Weaving Type Shuttle Loom Machine , Window Screen Machine 1600 Width

Brand Name : JG

Model Number : JG-09

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : a sets

Supply Ability : 50 sets /month

Delivery Time : 15 work days

Packaging Details : nude packing

Width : 1600

type : weaving

motor power : 2.2KW

Opening density : 16-120

Wire diameter : 0.14-0.30

Rotating speed of crank shaft : 65-75

Price : 6000US$

Contact Now

Shuttleless Weaving Machine /weaving machine /width 1600mm

Specifications

shuttleless weaving machine
1, 1300B 1300D heavy, heavy tudy type
2, B type, 40-350mesh,
2, D type, 10-100mesh

shuttleless weaving machine

Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttless and straightway weft leading,automatic warp feeding and winding.Sheddings are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high effciency.

5, Rational design,simple construction,easy to operate and maintain.

Model	Width	Opening density	Wire diameter	Rotating speed of crank shaft	Motor power
ZWJ1300B	1300MM	60-350	0.01-0.14	65-75	2.2kw
ZWJ1300D	1300MM	16-120	0.14-0.30	65-75	2.2kw
ZWJ1600B	1600MM	60-350	0.01-0.14	65-75	2.2kw
ZWJ1600D	1600MM	16-120	0.14-0.30	65-75	2.2kw
ZWJ2000heavy duty type	2000MM	10-100	0.2-1.0	45-55	4kw

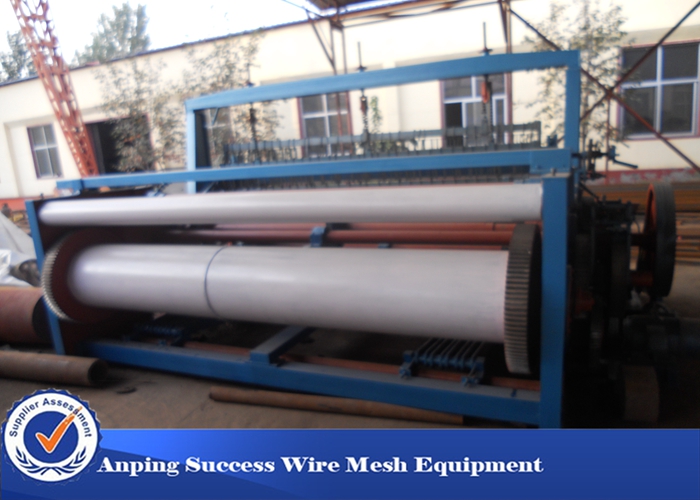

The picture

Weaving Type Shuttle Loom Machine , Window Screen Machine 1600 Width
